Name: Model 403 General Purpose Brass Nitrogen, Argon, Carbon Dioxide Line Regulator 0-250 PSIG by Harris
SKU: Welding Regulators 321170403
Availability: InStock

Original price was: $202.40.Current price is: $97.99.

Spec gas lab regulator used for high purity gas applications
Non-Corrosive gas regulator
0 – 250 delivery pressure

SKU: Welding Regulators 321170403 Categories: Tools, Welding & Soldering, Welding Regulators, Welding Supplies Tag: Harris

Service with a smile, always online.
Get the quality you deserve, for less.
Safe Transactions, Always
Worry-Free Shopping with Safe Payments

Model GP403 is a brass single-stage pipeline regulator with a neoprene diaphragm for general purpose applications. The Model GP403 is not recommended for high-purity applications that may be sensitive to contamination due to elastomeric components. Regulator is suitable for non-corrosive industrial grade gases, purging, pressure testing and blanketing. General purpose line regulator, 250 PSI with gauge and internal relief valve.

Neoprene diaphragm for greater sensitivity
1-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE Teflon seat from particulate contamination
Equipped with tamper-proof, self-reseating internal safety valve
Brass body, bonnet and fittings

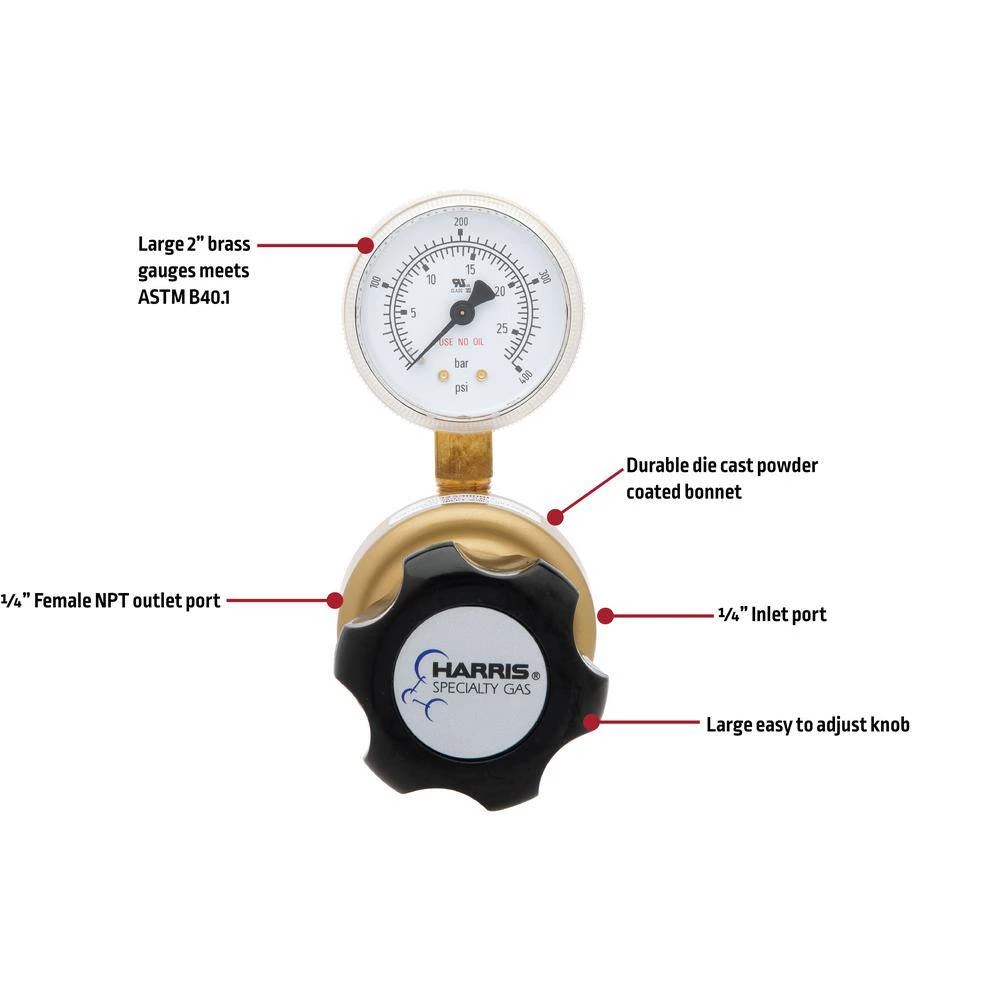

2 in. dual scale brass gauge (psi/kPA)
Conforms to CGA E-4 standard for gas pressure regulators

Accessory Type	Regulator
Maximum inlet pressure (psi)	3000
Maximum working pressure (psi)	250
Minimum working pressure (psi)	0
Product Weight (lb.)	2.6 lb
Returnable	90-Day
Certifications and Listings	CGA E-4 Certified
Manufacturer Warranty	1 Year
Gauge size (in.)	2
Hose fitting size (in.)	.25 in
Product Depth (in.)	5.25 in
Product Height (in.)	2.5 in
Product Width (in.)	4.65 in
