230-Volt/460-Volt 3 HP 3PH Oscillation Edge Sander by Powermatic
Original price was: $534.00.$97.99Current price is: $97.99.
Features 3 HP 3-phase motor to power the belt and run gearbox
Comes with 5-year manufacturer warranty
Produces 24 oscillations per minute for optimum finishing
- Service with a smile, always online.
- Get the quality you deserve, for less.
- Safe Transactions, Always
- Worry-Free Shopping with Safe Payments

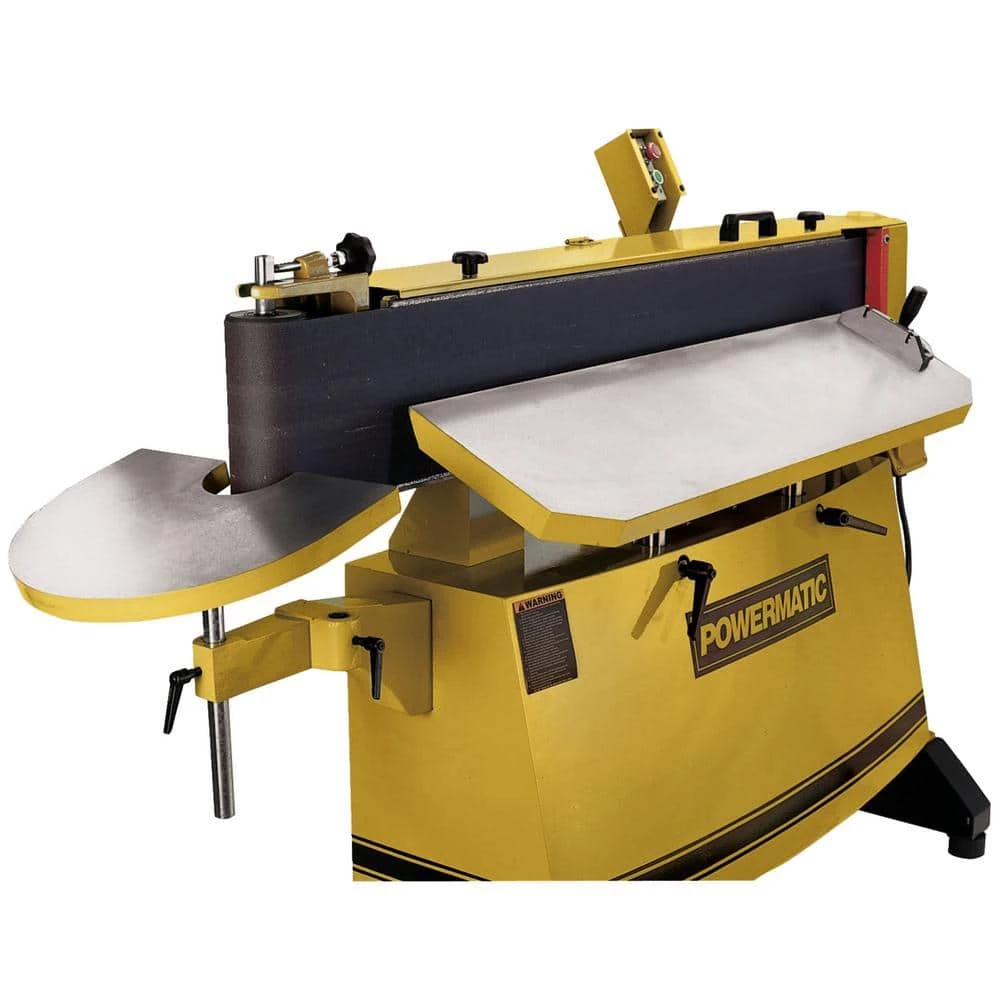

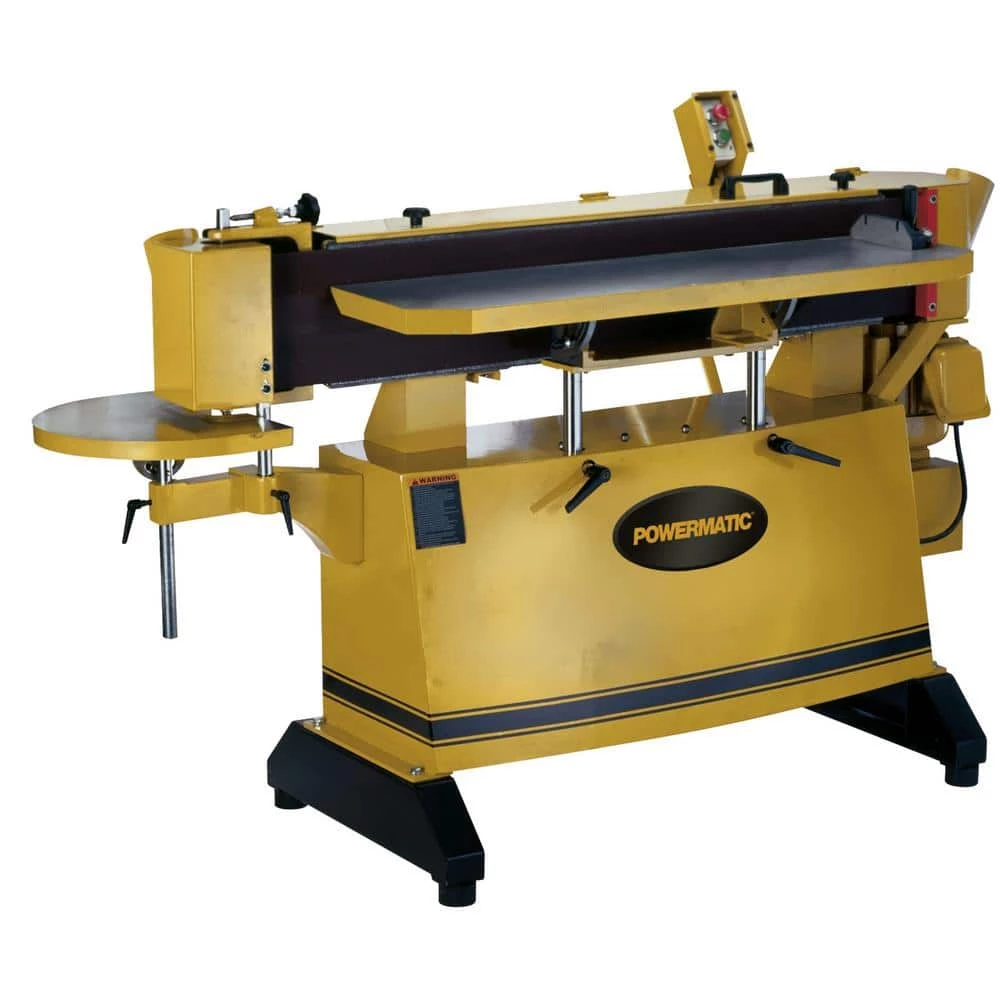

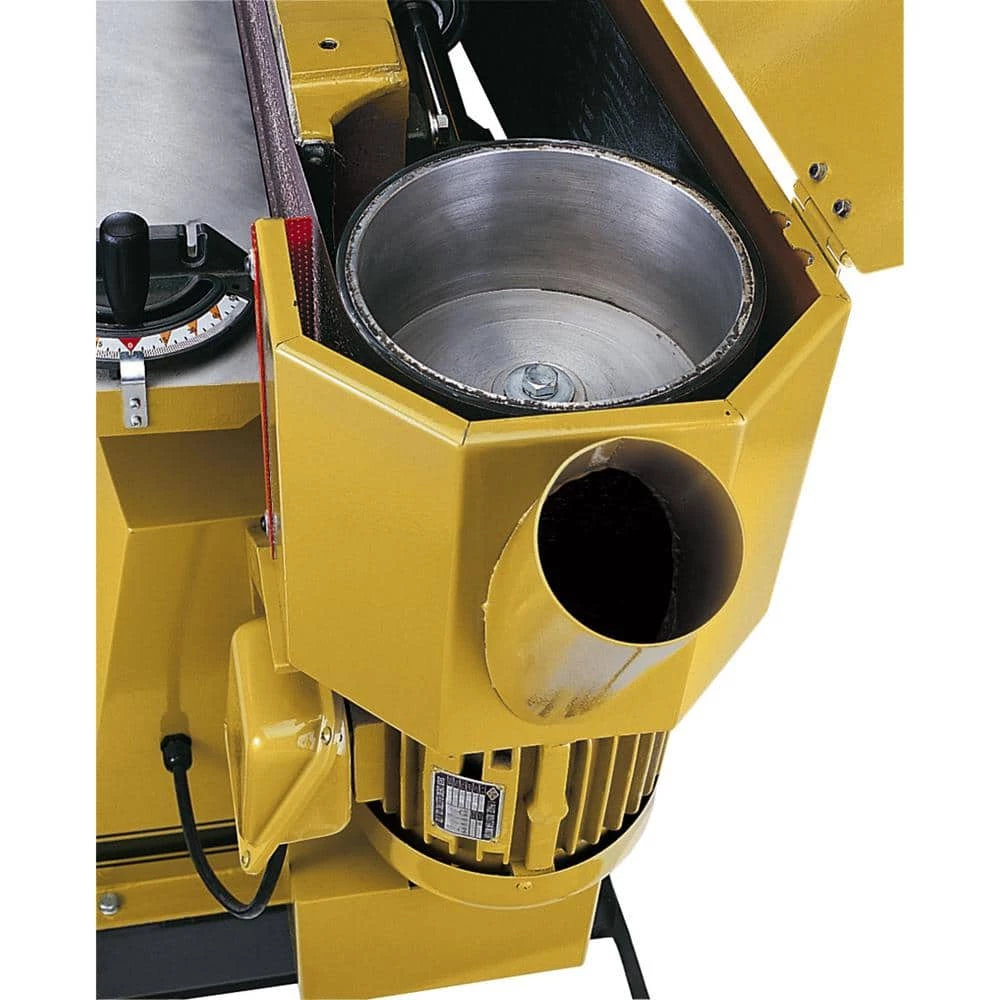

The large 11-3/4 in. x 48 in. table on the OES9138 oscillating edge sander travels a full 8 in. in vertical height to accommodate most woodworking pieces. It will also tilt negative 5 and out to positive 45. The cast iron platen is a generous 48 in. x 9-1/2 in. and covered with graphite for production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. A 3 HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with 2 sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt.
- 3 HP motor with 9 in. x 138-3/4 in. abrasive belt handles large work pieces
- Oscillates 24 cycles per minute for better finish and longer belt life
- 9-1/2 in. x 48 in. platen with graphite pad offers largest work surface in its class

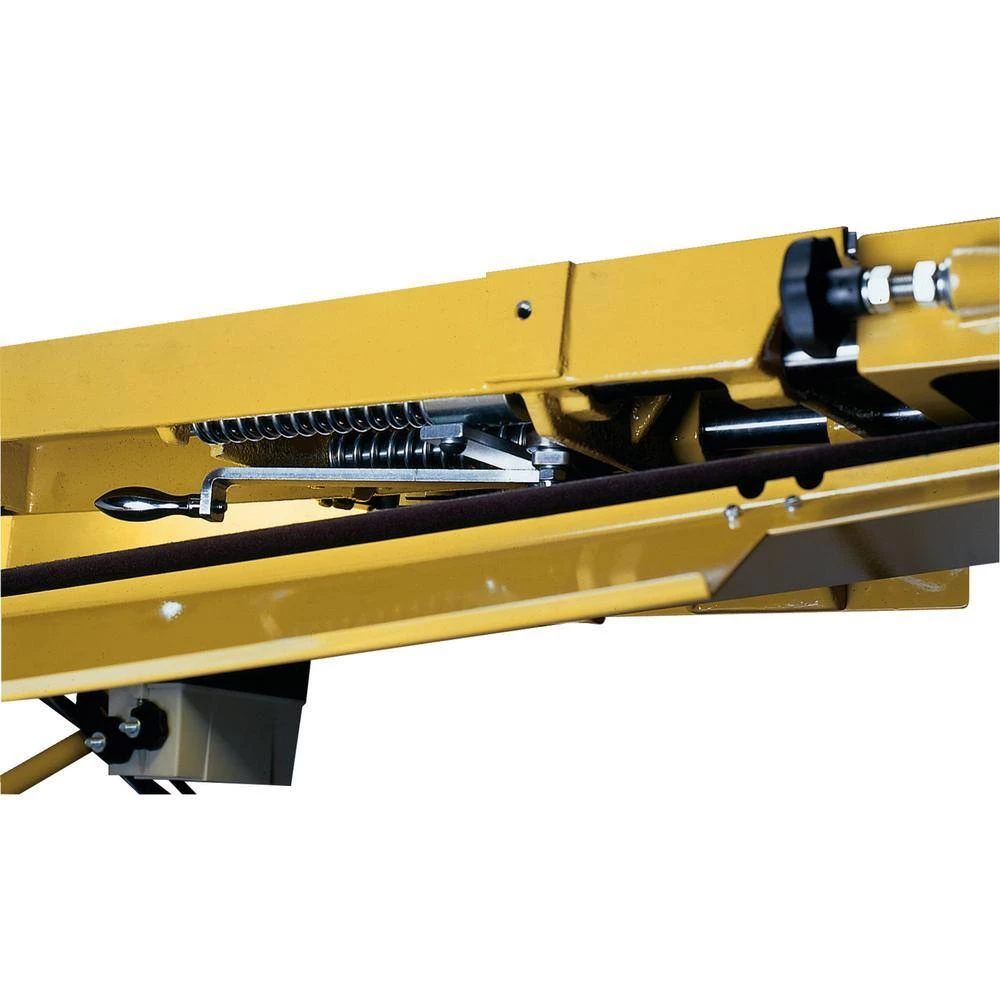

- Rugged bearing-assisted tensioning device for fast belt changes and quick adjust tracking
- Pedestal control switch for easy access

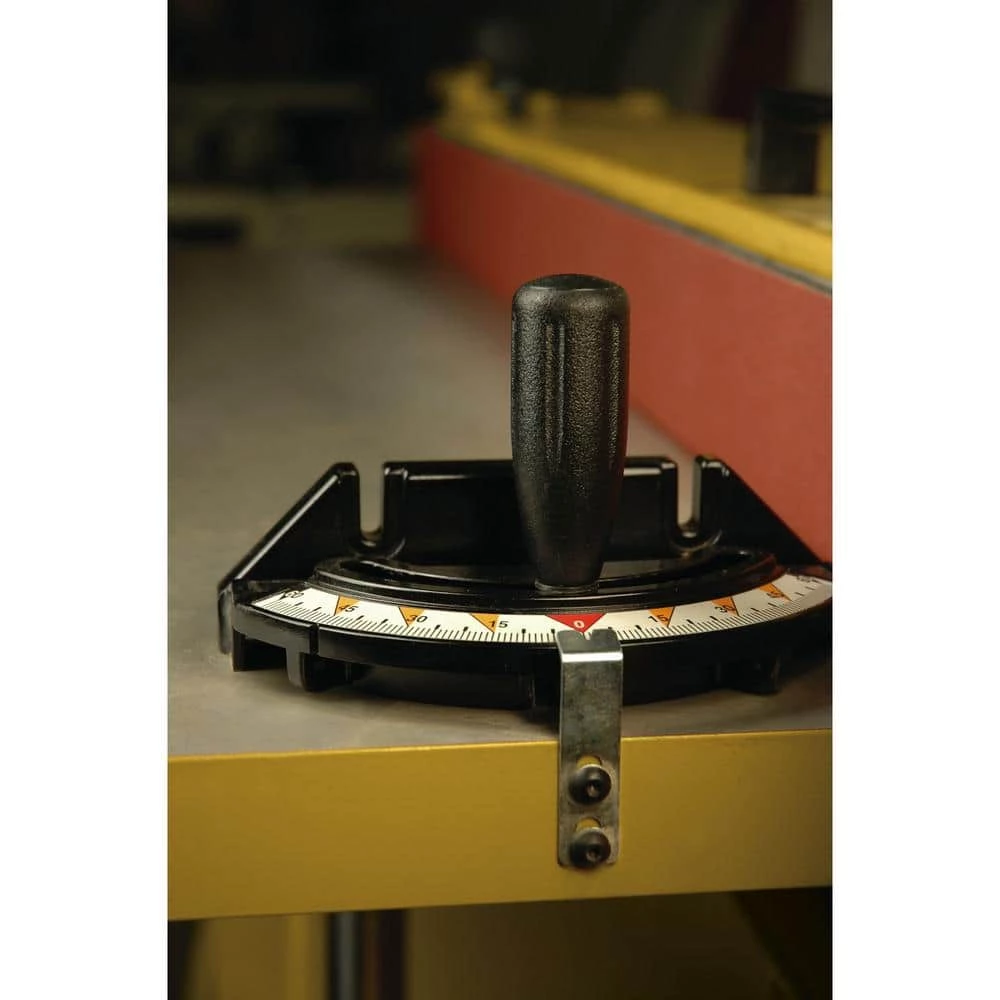

- Large 11-3/4 in. x 48 in. front worktable with 8 in. vertical travel and 45° tilt, includes miter head for angle work
- Precision balanced 9 in. Dia drive drum and 4 in. Dia rubber coated idler pulley for positive drive and rigid tracking

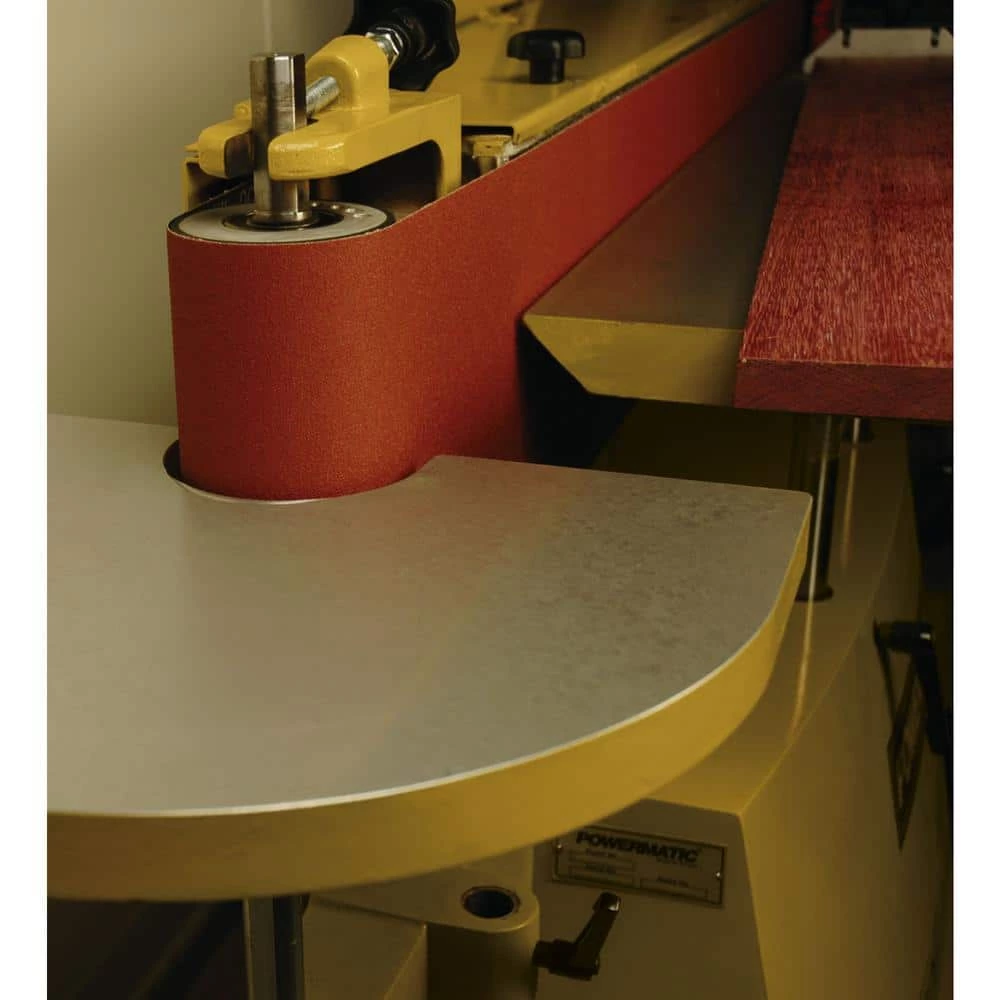

- Large radius end table has 6 in. vertical travel and 45 tilt for any angle and working height needed
- Heavy-duty oscillating gearbox and shaft for long maintenance-free use

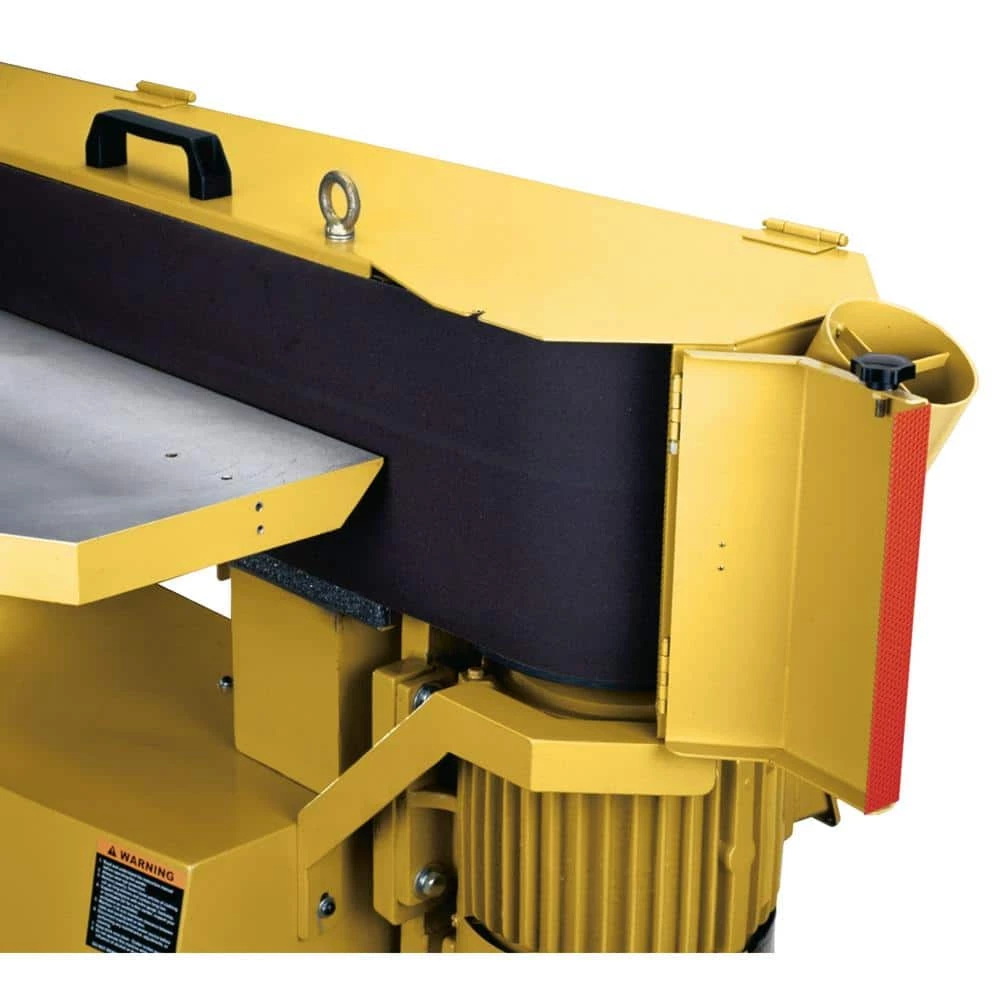

- Hinged guard opens for infinite length sanding
| Amperage (amps) | 15 A |
|---|---|
| Tools Product Type | Power Tool |
| Work Table Length (in.) | 48 in |
| Product Width (in.) | 32 in |
| Product Height (in.) | 50 in |
| Product Depth (in.) | 83 in |
| Belt width (in.) | 138.75 |
| Belt length (in.) | 9 |
| Manufacturer Warranty | 5 Years |
| Certifications and Listings | No Certifications or Listings |
| Voltage (volts) | 460 V |
| Variable Speed | No |
| Returnable | 90-Day |
| Bench & Stationary Tool Type | Edge/Belt Sander |
| Reconditioned | No |
| Product Weight (lb.) | 800 lb |
| Power Tool Features | No Additional Features |
| Portability | Stationary |
| Minimum belt sanding speed (ft./min.) | 3542 |
| Maximum belt sanding speed (ft./min.) | 3542 |
| Dust collection type | Port |
| Cord Length (ft.) | 6 |
| Condition | New |
| Color Family | Yellow |
| Work Table Width (in.) | 11.75 in |
