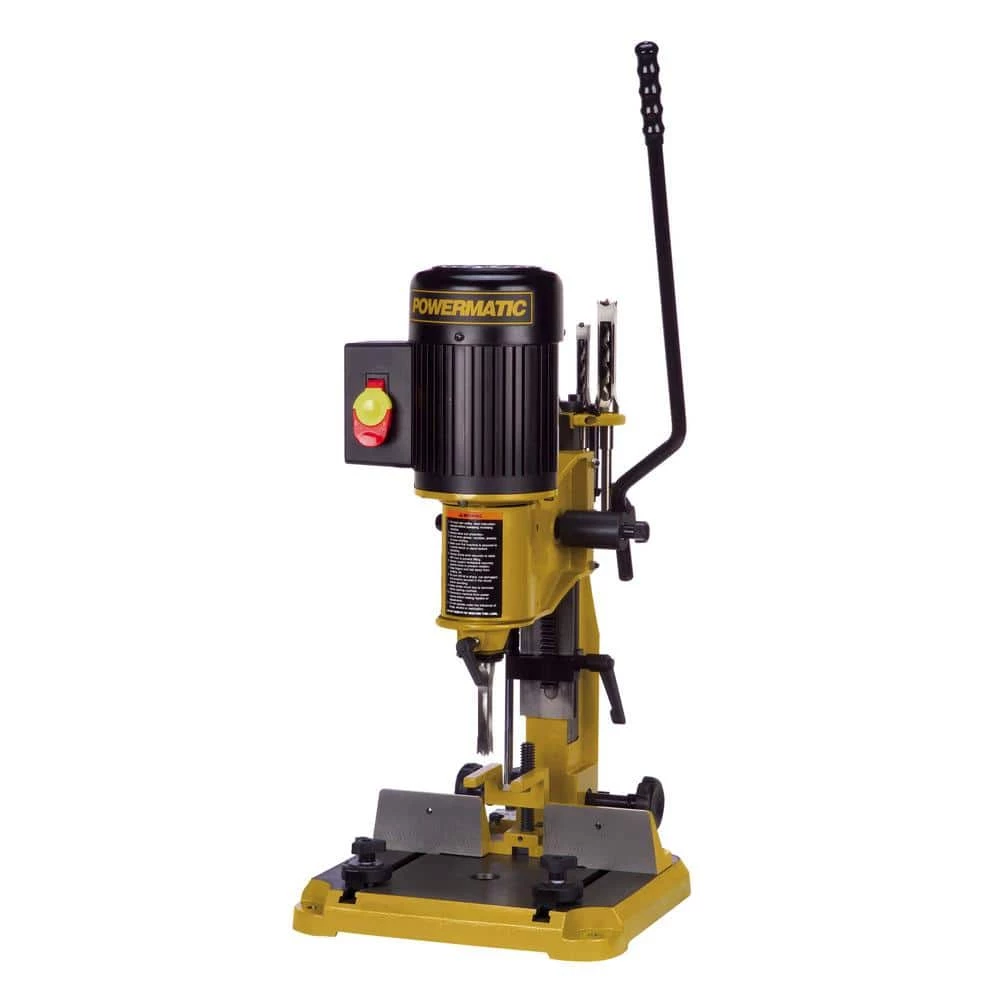

115-Volt/230-Volt 3/4HP 1PH Mortiser by Powermatic

The new Powermatic PM701 Benchtop Mortiser features an in-line depth stop which allows the user to stop at preset depths without racking the mortiser bit to the base. Its heavy-duty reversible handle is so versatile that it can be changed from 1-side to the other quickly and easily and requires no tools to do so. The stock hold down features a specially designed double lock system. 1 locks from the side, the other locks from the top, to completely eliminate any slippage when removing the chisel from the work piece. This hold-down is also reversible to allow stock from 0 in. to 5 in. thick to be captured underneath it. The new Powermatic 701 Benchtop Mortiser has a quick-action cam lock that will quickly lock the fence into position with one 90° movement. This lock also features lock nuts, so once set they will not have to be continually adjusted. Set-up has never been easier or more precise. The new Powermatic 701 Benchtop Mortiser features an integrated bit and chisel spacer system. These 2 spacers are used to accurately and quickly account for the space needed between the bit and chisel during set-up. Large work surfaces in the table and fence allow for more stability and accurate cuts. The new mortiser also includes a large hinged chuck door with magnetic catch. This unique element allows the user to easily access the drill chuck with the standard 4 in. chuck key to lock the bit in place. In addition, its rack and pinion allow for simple and quick fence adjustments.

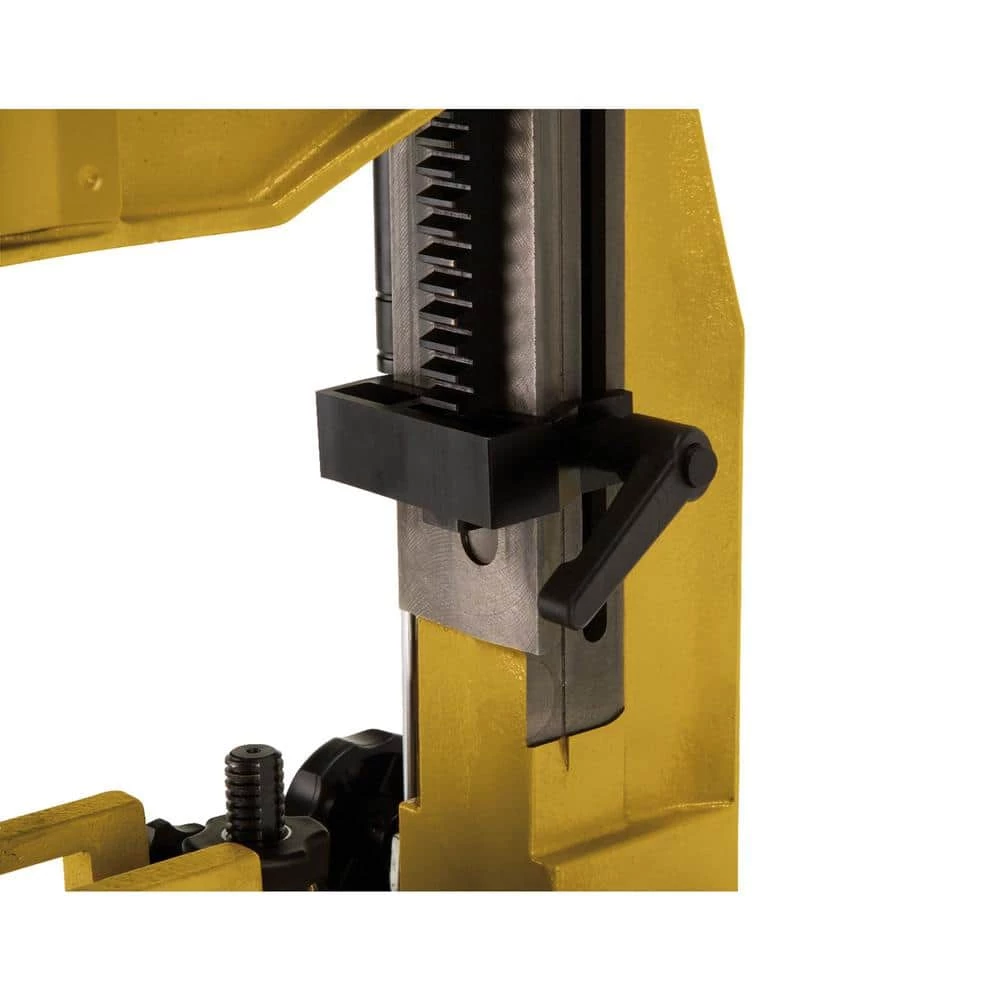

• In-line depth stop allows stopping at pre-set depths without racking the bit to the base
• Heavy-duty reversible handle can be installed to either side of the head without tools

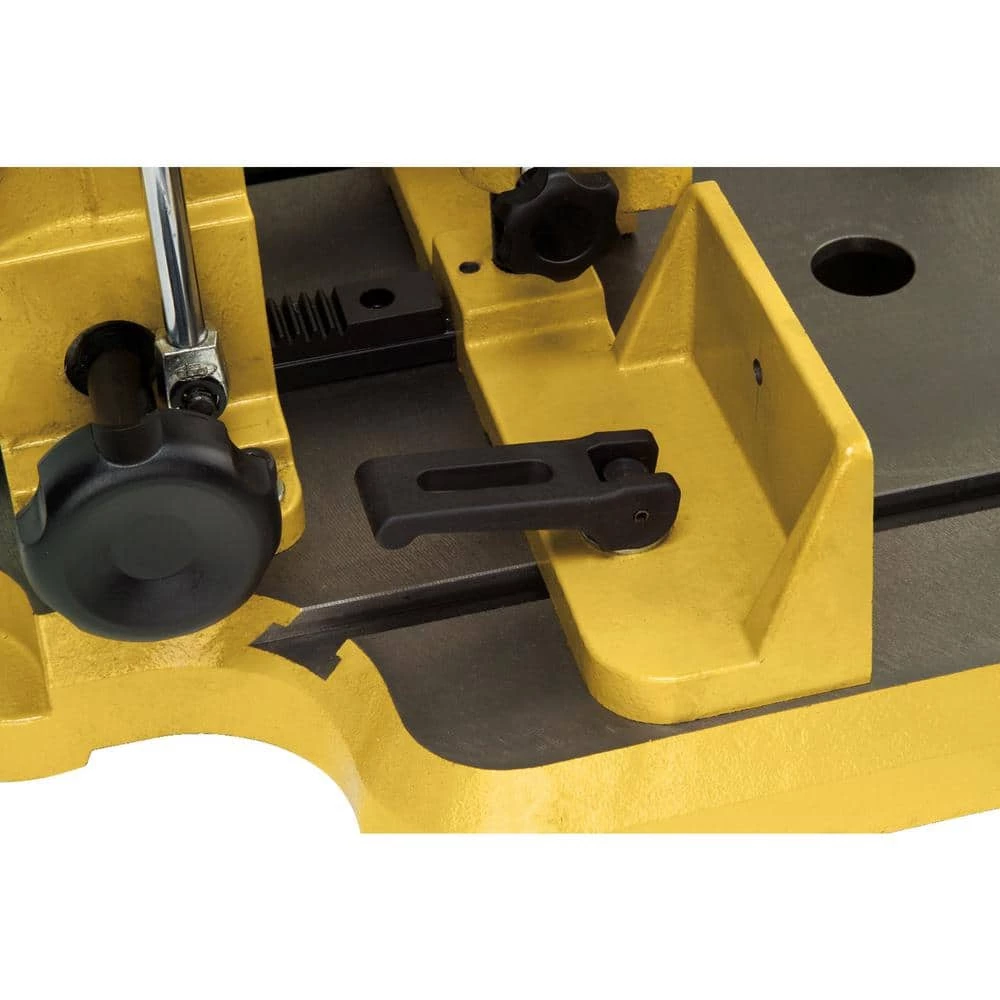

• Stock hold-down with a double lock system, top and side, to eliminate slippage of work piece
• Quick action cam lock will quickly lock fence in position with one 90° movement
• 2 integrated bit and chisel spacers for quick set up

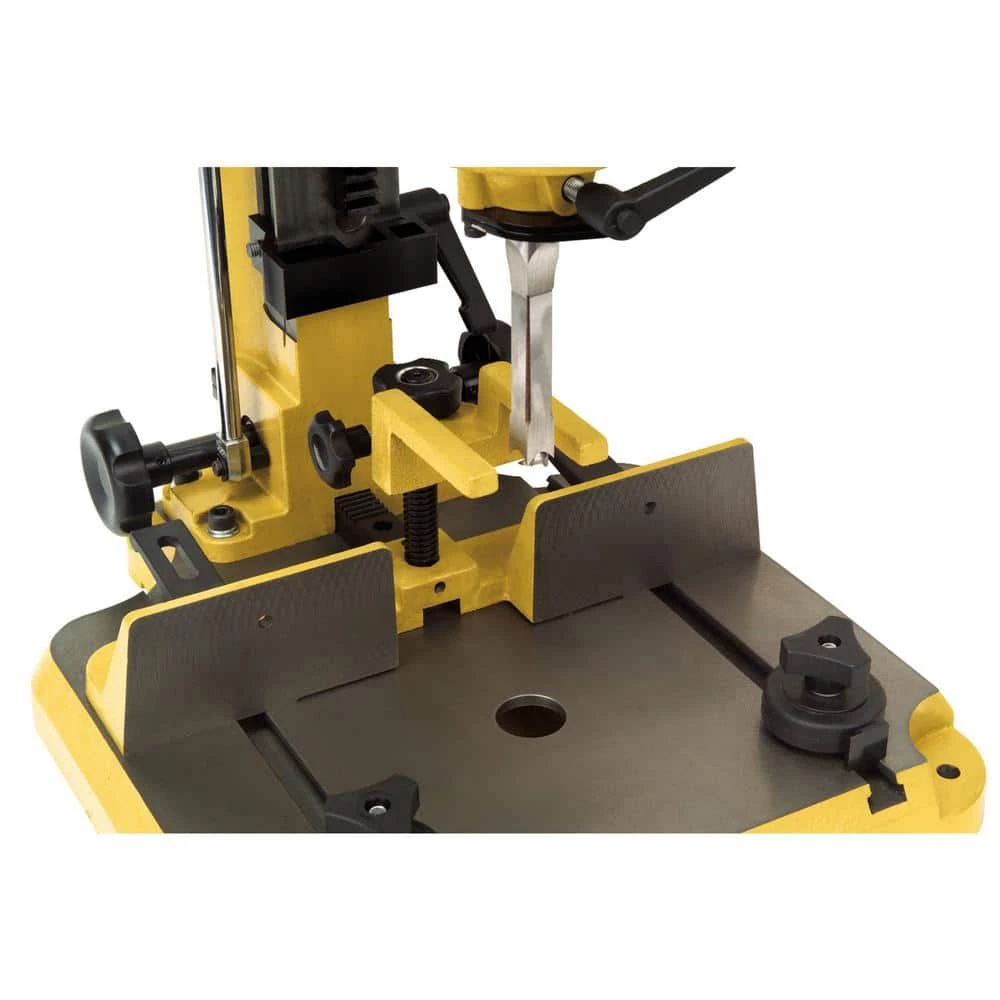

• Large work surfaces on both table and fence for greater stability and accuracy

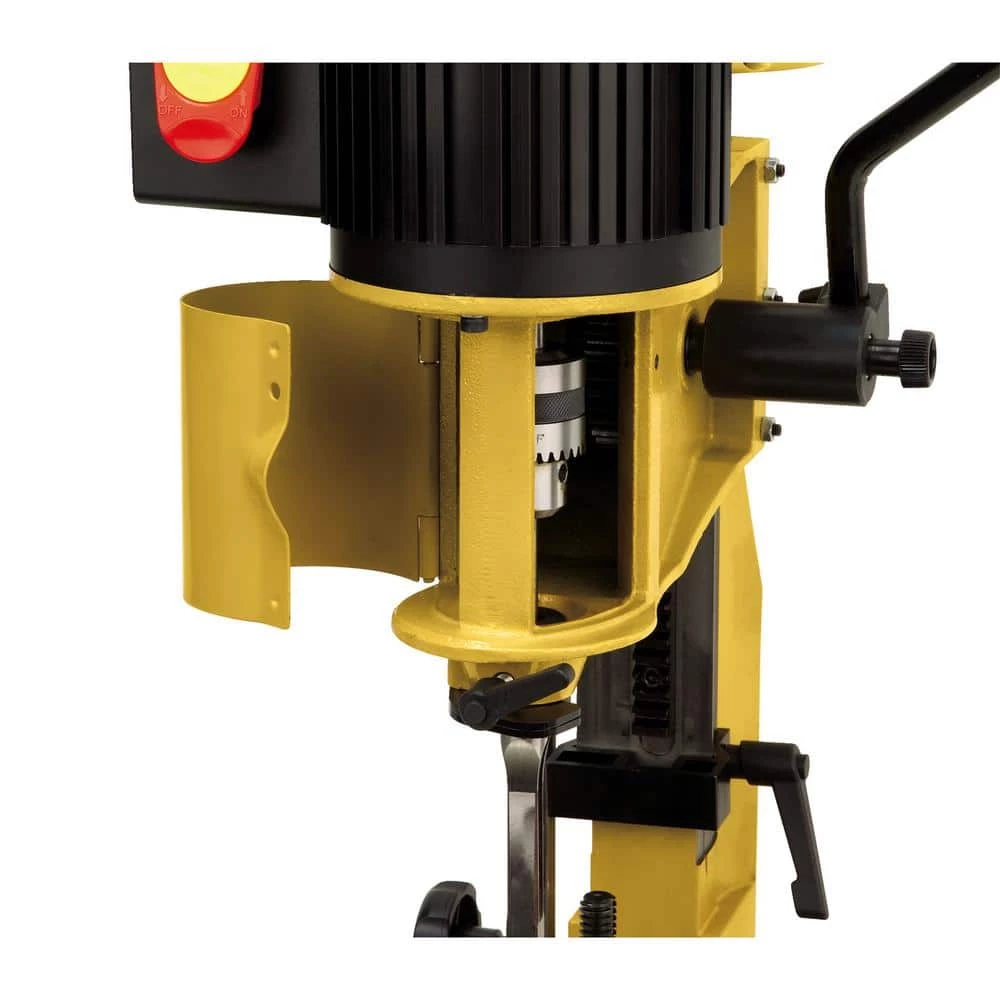

• Large, hinged chuck door with magnetic catch for rapid access to the chuck
• Rack and pinion design for simple fence adjustments

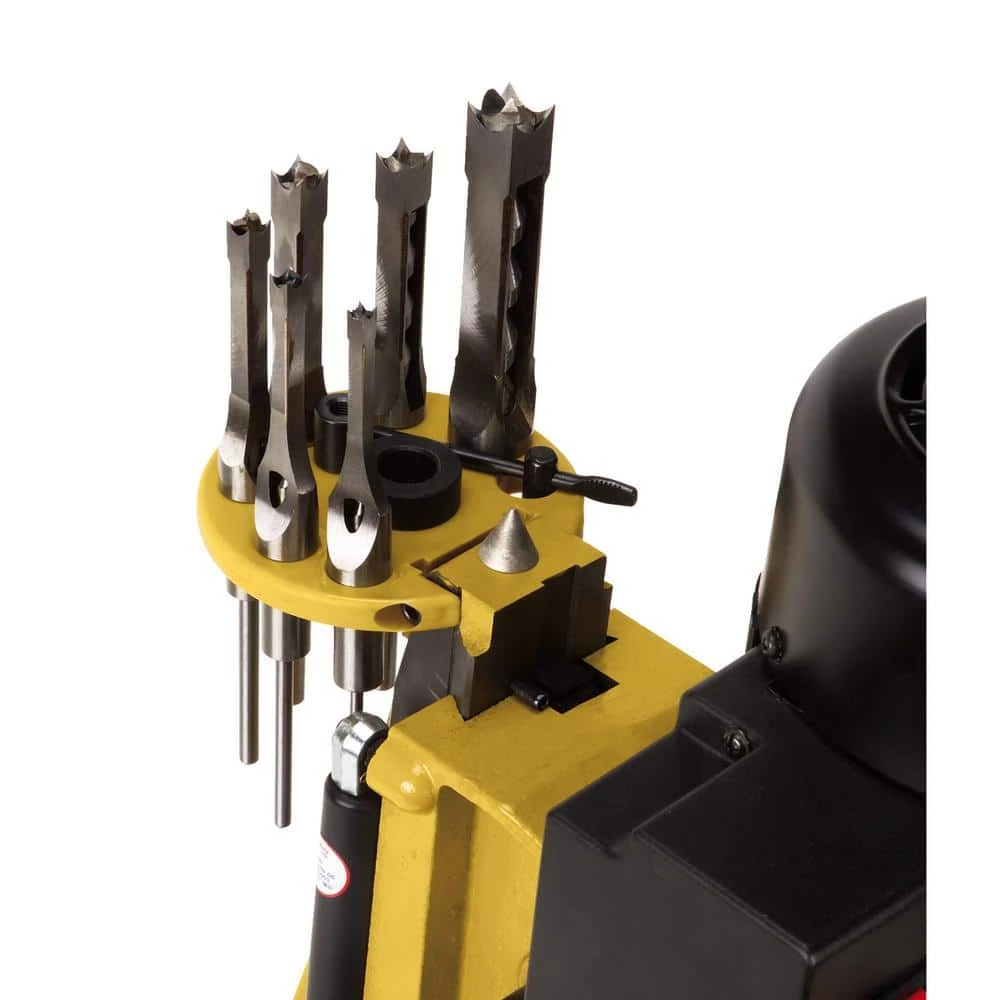

• Integrated chisel and tool holder with sharpening stone
