1/4 in. Model 403 General Purpose Brass Nitrogen, Argon, Carbon Dioxide Line Regulator 0-15 PSIG by Harris

1/4 in. Model 403 General Purpose Brass Nitrogen, Argon, Carbon Dioxide Line Regulator 0-15 PSIG by Harris - Image 2

1/4 in. Model 403 General Purpose Brass Nitrogen, Argon, Carbon Dioxide Line Regulator 0-15 PSIG by Harris - Image 3

1/4 in. Model 403 General Purpose Brass Nitrogen, Argon, Carbon Dioxide Line Regulator 0-15 PSIG by Harris - Image 4

1/4 in. Model 403 General Purpose Brass Nitrogen, Argon, Carbon Dioxide Line Regulator 0-15 PSIG by Harris - Image 5

1/4 in. Model 403 General Purpose Brass Nitrogen, Argon, Carbon Dioxide Line Regulator 0-15 PSIG by Harris - Image 6

1/4 in. Model 403 General Purpose Brass Nitrogen, Argon, Carbon Dioxide Line Regulator 0-15 PSIG by Harris - Image 7

1/4 in. Model 403 General Purpose Brass Nitrogen, Argon, Carbon Dioxide Line Regulator 0-15 PSIG by Harris

Name: 1/4 in. Model 403 General Purpose Brass Nitrogen, Argon, Carbon Dioxide Line Regulator 0-15 PSIG by Harris
SKU: Welding Regulators 321170339
Availability: InStock

Original price was: $171.23.Current price is: $95.99.

Spec gas lab regulator used for high purity gas applications
Non-Corrosive gas regulator
0 – 15 delivery pressure

SKU: Welding Regulators 321170339 Categories: Tools, Welding & Soldering, Welding Regulators, Welding Supplies Tag: Harris

Service with a smile, always online.
Get the quality you deserve, for less.
Safe Transactions, Always
Worry-Free Shopping with Safe Payments

Model GP403 is a brass single-stage pipeline regulator with a neoprene diaphragm for general purpose applications. The Model GP403 is not recommended for high-purity applications that may be sensitive to contamination due to elastomeric components. Regulator is suitable for non-corrosive industrial grade gases, purging, pressure testing and blanketing.

Neoprene diaphragm for greater sensitivity
1-piece encapsulated seat design with 10 mic sintered internal filter to protect the PTFE Teflon seat from particulate contamination
Equipped with tamper-proof, self-reseating internal safety valve
Brass body, bonnet and fittings

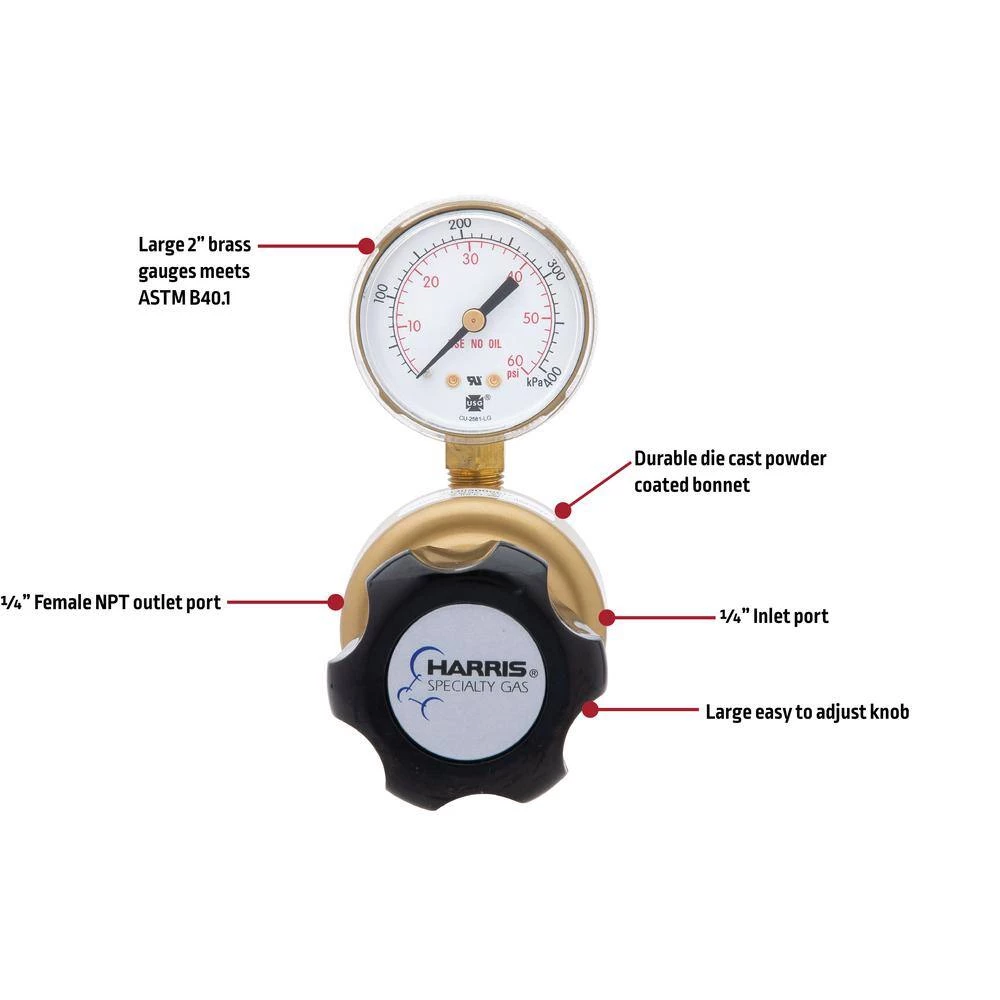

2 in. dual scale brass gauge (psi/kPA)
Conforms to CGA E-4 standard for gas pressure regulators

Accessory Type	Regulator
Maximum inlet pressure (psi)	3000
Maximum working pressure (psi)	15
Minimum working pressure (psi)	0
Product Weight (lb.)	2.6 lb
Returnable	90-Day
Certifications and Listings	CGA E-4 Certified
Manufacturer Warranty	1 Year
Gauge size (in.)	2
Hose fitting size (in.)	.25 in
Product Depth (in.)	5.25 in
Product Height (in.)	2.5 in
Product Width (in.)	4.65 in
